Hybrid & All Flash Arrays

Compelling primary storage – without compromise

Business agility

with Unity XT deployment options

VxBlock System

Converged Infrastructure

Featuring Dell storage and data protection
(VMware Cloud Foundation supported on VxBlock 1000)




Unity XT HFA & AFA

Storage Appliance

Connect existing servers, OS and network

Unity Cloud Edition

Software-defined Storage

Deploy on VCF in AWS cloud

UnityVSA

Software-defined Storage

Deploy on VMware ESXi on premise

Low introductory prices

Performance of flash with the economics of disk

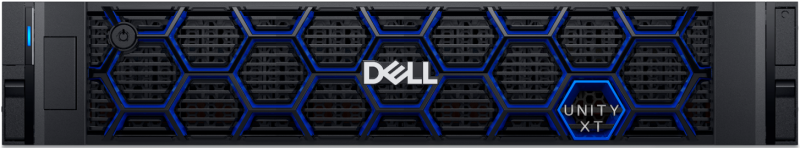

Unity XT 380 Hybrid Flash Array

  • Starts in 2U form factor with all-inclusive software
  • Affordably expand to 2.4PB & up to 500 drives
  • Run advanced dedupe with more memory
  • Manage block, file & VMware vVol data from a single storage pool

A cost-effective choice for starting small & then easily scale as your business grows

Valid Unity XT 380 HFA configurations starting as low as:

$12,0001

(street price)

1 Based on May 2023 Dell Technologies pricing in US dollars for Unity XT 380 when configured with single Hybrid DPE, 4x600GB 10K SAS 25x2.5, CNA 4x16Gb FC SFPs, 400GB FAST Cache 25x2.5 SSD, Install kit, 3-year ProSupport. Actual price may vary based on a variety of factors.

Unity XT at-a-glance

HFA Models:
AFA Models:
Unity XT 3801
Unity XT 380F
Unity XT 480
Unity XT 480F
Unity XT 680
Unity XT 680F
Unity XT 880
Unity XT 880F
CPU (per system) 12 Cores
2x Single-Socket
1.7GHz
32 Cores
2x Dual-Socket
1.8GHz
48 Cores
2x Dual-Socket
2.1GHz
64 Cores
2x Dual-Socket
2.1GHz
Memory (per system) 128GB 192GB 384GB 768GB
Max raw capacity 2.4PB 4.0PB 8.0PB 16.0PB
Max drives 500 750 1000 1500
1 Runs advanced dedupe on 380 and 380F models with more memory
